How to Install Android TV on the Fire TV 2.

Page 2 of 3

This tutorial is broken down into numerous sections as there is a lot to do. You can jump to any section by clicking on it.







Section 3 - Install the Android TV Launcher.




Step 1

Do NOT download the most recent version of the Android TV Launcher as it has issues with the Fire TV remote not functioning on the home screen. Instead download version 1.1.6.2973566 from September 3, 2016.

Download it here.

Fire TV


Step 2

Sideload the file to the Fire TV using adbLink. Click the Install APK button.

Fire TV



Select the file and click Open.

Fire TV



Confirm the install and click Yes.

Fire TV



adbLink will display the running job.

Fire TV



Section 4 - Install the Xposed Framework.




Step 1

I downloaded xposed-v87-sdk22-arm64.zip from here. Click on the sdk22 link. If there is a new version number available, the next would be 88, then you may want to download that instead.

Fire TV



Keep in mind the Fire TV and Fire TV Stick 1st and 2nd generation models, are all based on Android 5.0 - API 22 according to Amazon’s specifications page here. Because of this, that's why we're only looking for the file in the sdk22 section. Fire TV 2nd generation is 64 bit, Fire TV 1st generation is 32 bit. Both Fire TV sticks are 32 bit. You'll want to download the appropriate framework file.


Step 2

To install the xposed-v87-sdk22-arm64.zip file we will use the same program we used to install the 5.2.4.0 firmware: TWRP.

Place the file on your USB drive.

Fire TV



Reboot the Fire TV: Settings, Device, Restart.

Fire TV



At the selection screen pick Launch Recovery.

Fire TV






Once you are at this menu screen click the Install button.

Fire TV



Select the xposed-v87-sdk22-arm64.zip file.

Fire TV



Click the button with the three arrows on it right next to where it says Swipe to confirm Flash in the bottom right corner. The process will start immediately.

Fire TV



Click the Reboot System button when it's finished.

Fire TV



Step 3

I downloaded the XposedInstaller_3.1.1.apk from here.

Fire TV



Step 4

Use adbLink to sideload the XposedInstaller_3.1.1.apk file. Click the Install APK button.

Fire TV



Select the file and click Open.

Fire TV



Once it has finished installing, go to the Fire TV and launch it. Go to Settings and then Applications.

Fire TV



Select Manage Installed Applications.

Fire TV



It should say Show All Applications.

Fire TV



Scroll down the list to Xposed Installer and select it.

Fire TV



Select Launch application.

Fire TV

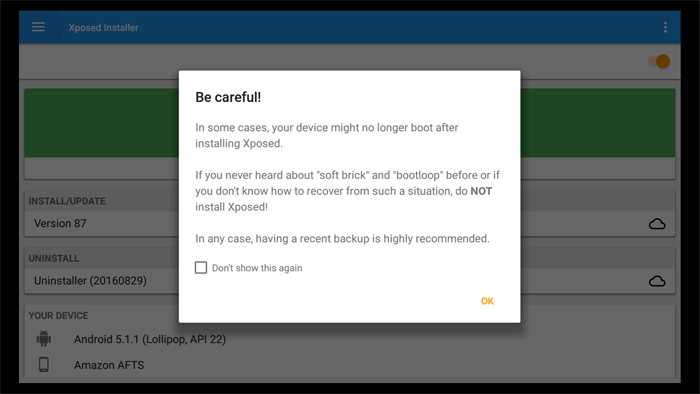

Here's the biggest warning message I've ever seen. You might want to read it...

Fire TV



At this screen if it says the Xposed Framework version [number] is active, you're set. Leave this program open, we'll be coming back to it soon.

Fire TV



Section 5 - Install the HDXPosed module.




Step 1

Download the HDXPosed module here.

Fire TV



Step 2

Use adbLink to sideload the module. Click the Install APK button.

Fire TV



Select the file and click Open.

Fire TV


Step 3

On the Fire TV go back to the Xposed Installer which should still be open, otherwise relaunch it. Click on the three lines in the top left corner of the screen.

Fire TV



Click on Modules.

Fire TV



On the HDXPosed entry click the check box on the right to activate it.

Fire TV



Restart the Fire TV.

Fire TV
